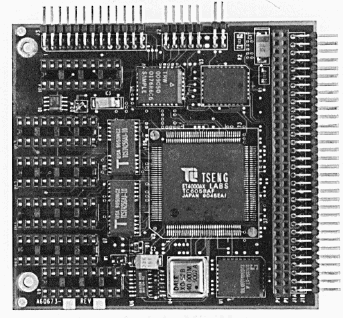

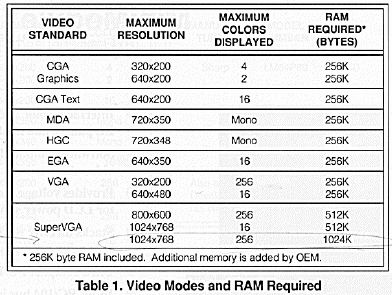

High resolution, up to 1024 x 768 with 256 colors Fully software compatible with five popular video standards: VGA, EGA, CGA, MDA, and Hercules monochrome graphics Supports analog or TTL CRTs Feature connector for external device connection Stacks directly with Ampro CPU and expansion products Ultra-compact PC/104 form-factor: 3.6 x 3.8 inches (90 x 96 mm) Low power, rugged, and reliable The MiniModule/SuperVGA expansion module offers full software compatibility with five popular PC video standards VGA, EGA, CGA, MDA, and Hercules monochrome graphicsin a compact, low power, module designed to stack directly with Ampro's Little Board and CoreModule family products. With its full 1 megabyte of display memory populated, the module supports "super VGA" high resolution graphics of up to 1024 x 768 pixels in 256 colors. Both Analog and TTL CRT monitors can be connected. Also, the module's VGA feature connector interface allows connection of certain electro-luminescent (EL) display panels, as well as other types of unique video input and output interfaces. The MiniModule/SuperVGA is sup- ported by virtually all operating systems, drivers, utilities, and applications for text and graphics display because of its com- patibility with standard PC video modes. Thanks to the use of the popular Tseng Labs ET4000 controller, software support is widely available for the module's SuperVGA modes. The MiniModule/VGA can be installed directly on Ampro Little Board and CoreModule family CPU or expansion products, in any PC/104 module-stack position. The module can stack directly with the stackthrough bus headers of other PC/104 modules, without additional adapters or accessories. SPECIFICATIONS GENERAL Onboard display RAM: 256K to 1M byte (256K bytes provided) Modes and resolutions supported: see Table 1 Memory required vs. resolution: see Table 1 Upgrade RAM specifications: Access time: 100 ns, or faster Recommended devices: Fujitsu MB81C4256-80P; NEC uPD 424256C-80; or equivalent. Option of interlaced or non-interlaced displays in 1024 x 768 resolution modes MECHANICAL AND ENVIRONMENTAL Size: 3.6 x 3.8 x 0.6 inches (90 x 96 x 15 mm) Power requirement: +5V +/-5% at 360 mA (typical, includes 256K RAM) Operating environment: 0¡ to +70¡C temperature 5% to 95% relative humidity, non-condensing Storage temperature: -55¡ to +85¡C Weight: 2.9 oz. (80 gm) NOTE: Contact Ampro for custom configurations and extended temperature information. ORDERING INFORMATION When ordering, refer to the following model numbers: MMX-SVG-K-01 Development Kit, MiniModule/SuperVGA, non-stackthrough bus MMX-SVG-Q-01 MiniModule/SuperVGA, non-stackthrough (Quantity Orders) RAM-SVG-Q-01 256K display memory upgrade (two 256K x 4 DIPs) CBL-SVG-Q-01 Analog monitor interface cable (DB15F) The Development Kit includes: MiniModule/SuperVGA, analog monitor interface adapter, cable, and technical manual. Quantity orders include only the module. The first 256K bytes of display memory, sufficient for standard 640 x 480 VGA display, is always included. Please contact your local Ampro representative or Ampro Sales Administration for ordering information. Note: Display controller MiniModules are supplied with non-stackthrough bus only.
