Lightvectoring

Steve Mann, S.W.I.M. (Sequential Wave Imprinting Machine), 1974

(Scroll down the page for more recent pictures of the dusting (abakography, computational lightpainting) system with LED lights)

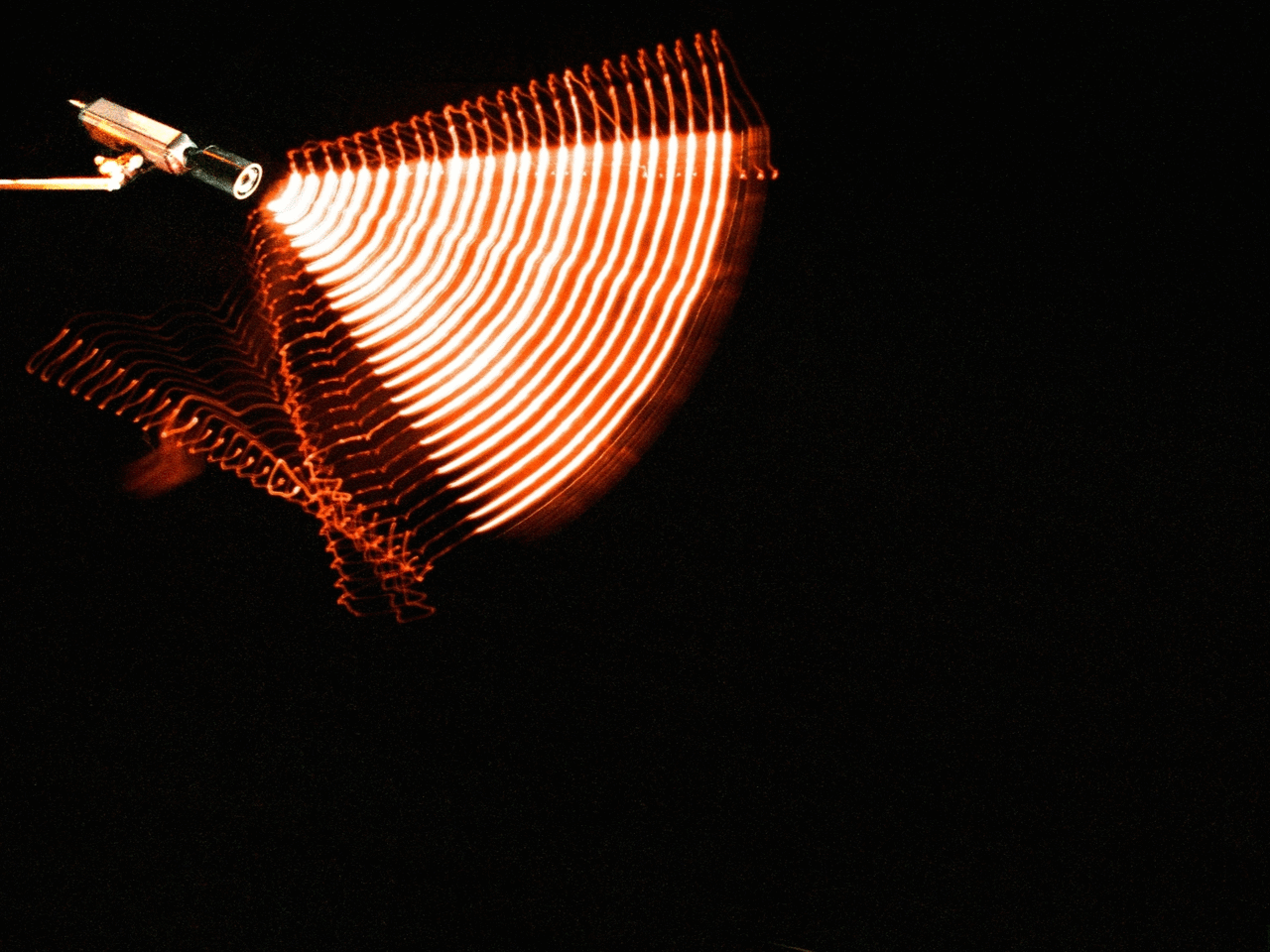

Surveillance Study -- 36 Exposures

1280x960 576x432 544x408 320x240

Steve Mann, 1985, using railway tracks as physical guide for augmented reality robotics... (as also described in Intelligent Image Processing, Wiley 2001)

Commercial photography system invented and used by S. Mann for full page ad in Impulse Magazine, 1985.


fullsize scan of full page adversitment uncompresses to approx. 90 megabytes: impulse_devah_hair1985proc_und4q50.jpg


Mast head from Impulse, Volume 12, Number 2, 1985:

fullsize scan of masthead uncompresses to approx. 20 megabytes: devah_hair1985_impulse_masthead.jpg

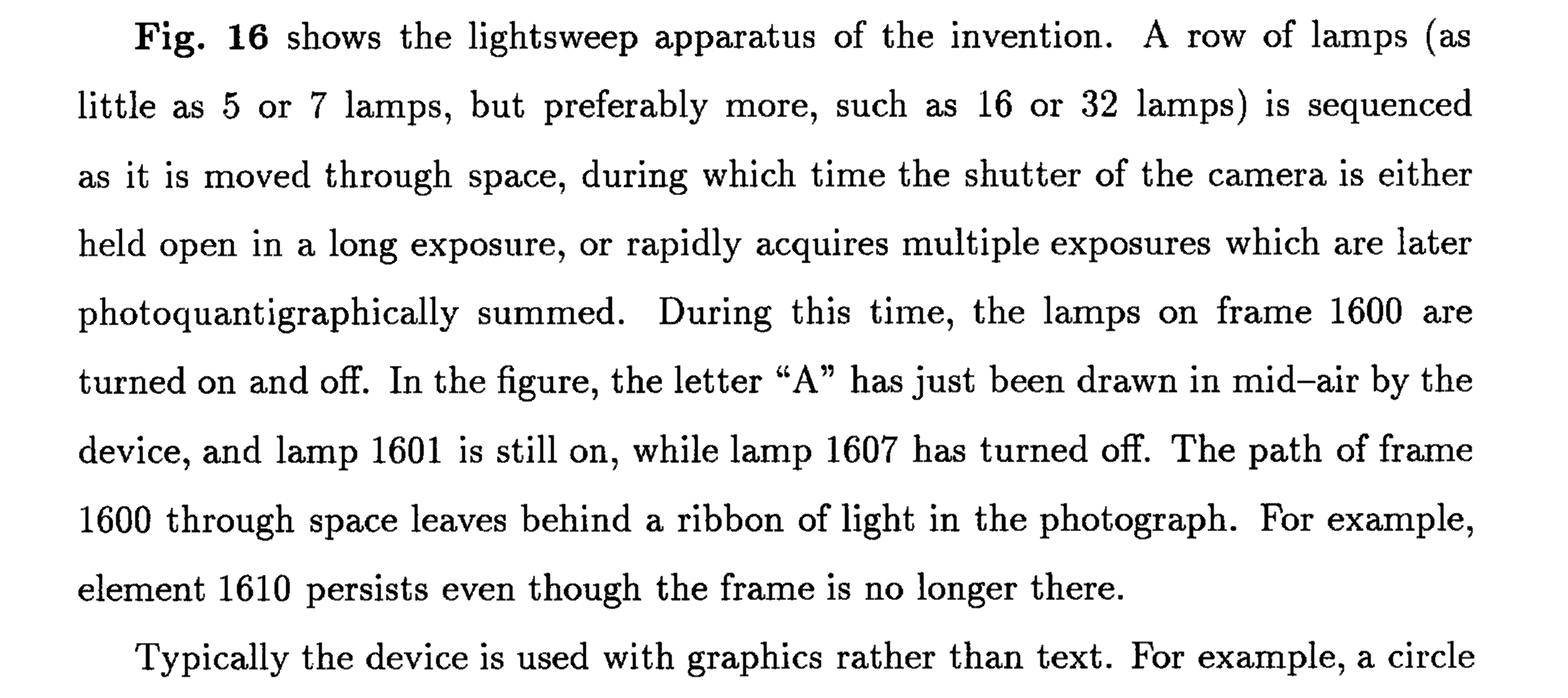

Canadian Patent 2261376,
English Title: MEANS AND APPARATUS FOR ACQUIRING, PROCESSING, AND COMBINING MULTIPLE EXPOSURES OF THE SAME SCENE OR OBJECTS TO DIFFERENT ILLUMINATIONS
French Title: MOYEN ET DISPOSITIF D'ACQUISITION, DE TRAITEMENT ET DE COMBINAISON D'EXPOSITIONS MULTIPLES D'UNE SCDNE OU D'OBJETS SOUS DIVERS ECLAIRAGES
Inventors (Country): MANN, STEVE (Canada)
http://worldwide.espacenet.com/publicationDetails/biblio?CC=GB&NR=2334591

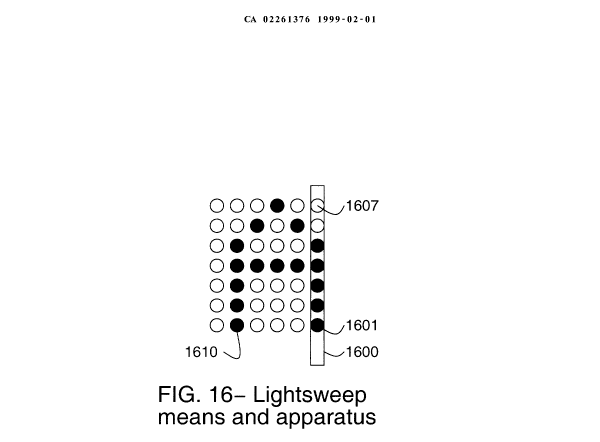

98. A lightsweep where said lightsweep includes a frame upon which a plurality of light sources is mounted, and means to vary the quantity of illumination produced by each of said light sources through a data entry device affixed to said lightsweep.



18 years later (2003), in my Tinquiry/Praxistemology Lab: Modular LED Lightpainting System

21 years later (2006):
