`Photoquantigraphy' with AGC: Joint parameter estimation in both domain and range of functions in same orbit of the projective-wyckoff group

Steve Mann
MIT Building E15-383, 20 Ames Street, Cambridge, MA 02139
Author currently with University of Toronto, Dept. Electrical and Computer Engineering
10 King's College Road, Toronto, Ontario, M5S 3G4
Tel. (416) 946-3387; Fax. (416) 971-2326

October 1995

Also appears in:

  author = "Steve Mann",
  number = "384",
  institution = "MIT Media Lab",
  address = "Cambridge, Massachusetts",
  month = "December",
  year = "1994",
  note = "also appears in:
          Proceedings of the
          IEEE International Conference on Image Processing (ICIP--96),
          Lausanne, Switzerland, September 16--19, 1996,
          pages 193--196"

A PostScript version of this paper is also available.


Consider a static scene and fixed center of projection, about which a camera is free to zoom, pan, tilt, and rotate about its optical axis. With an ideal camera, the resulting images are in the same orbit of the projective group-action, and each pixel of each image provides a measurement of a ray of light passing through a common point in space. Unfortunately, most modern cameras have a built in automatic gain control (AGC), automatic shutter, or auto-iris, which, in many cases cannot be turned off. Many modern digitizers to which cameras are connected have their own AGC which also cannot be disabled. With AGC, the characteristic response function of the camera varies, making it impossible to accurately describe one image as a projective coordinate transformed version of another. This paper proposes not only a solution to this problem, but a means of turning AGC into an asset, so that even in cases where AGC could be disabled, photoquantigraphers of the future will be turning AGC on.


Suppose we take two pictures, using the same settings (in manual exposure mode), of the same scene, from a fixed common location (e.g. where the camera is free to zoom, pan, tilt, and rotate about its optical axis between taking the two pictures). Both of the pictures capture the same pencil of lightgif, but each one projects this information differently onto the film or image sensor. Neglecting that which falls beyond the borders of the pictures, the images are in the same orbit of the projective group of coordinate transformations. The use of projective (homographic) coordinate transformations to automatically (without use of explicit features) combine multiple pictures of the same scene into a single picture of greater resolution or spatial extent, was first described in 1993[1]. These coordinate transformations were shown to capture the essence of a camera at a fixed center of projection (COP) in a static scene.

Note that the projective group of coordinate transformations is not Abelian and there is thus some uncertainty in the estimation of the parameters associated with this group of coordinate transformations[2]. However, we may first estimate parameters of Abelian subgroups (for example, the pan/tilt parameters, perhaps approximating them as a 2-D translation so that Fourier methods[3] may be used). Estimation of zoom (scale) together with pan and tilt, would incorporate non-commutative parameters (zoom and translation don't commute), but could still be done using the multiresolution Fourier transform[4][5], at least as a first step, followed by an iterative paramter estimation procedure over all parameters. An iterative approach to the estimation of the parameters of a projective (homographic) coordinate transformation between images was suggested in[1], and later in [6] and [7].

Lie algebra is the algebra of symmetry, and pertains to the behaviour of a group in the neighbourhood of its identity. With typical video sequences, coordinate transformations relating adjacent frames of the sequence are very close to the identity. Thus we may use the Lie algebra of the group when considering adjacent frames of the sequence, and then use the group itself when combining these frames together. Thus, for example, to find the coordinate transformation, tex2html_wrap_inline984, between tex2html_wrap_inline986, Frame 0 and tex2html_wrap_inline988, Frame 9, we might use the Lie algebra to estimate tex2html_wrap_inline990 (the coordinate transformation between Frame 10 and 11) and then estimate tex2html_wrap_inline992 between frames tex2html_wrap_inline994 and tex2html_wrap_inline996, and so on, each one being found in the neighbourhood of the identity. Then to obtain tex2html_wrap_inline984, we use the true law of composition of the group: tex2html_wrap_inline1000.


An ideal spotmeter is a perfectly directional lightmeter which measures the quantity of light, q, arriving from the direction in which it is pointed. The direction in which it is pointed may be specified in terms of its azimuth, tex2html_wrap_inline1004, and its elevation, tex2html_wrap_inline1006.

The `photoquantigraph'gif is a recording of the pencil of light rays passing through a given point in space, and could, in principle, be measured with a dense array of spotmeters aimed toward that point. (Fig 1).

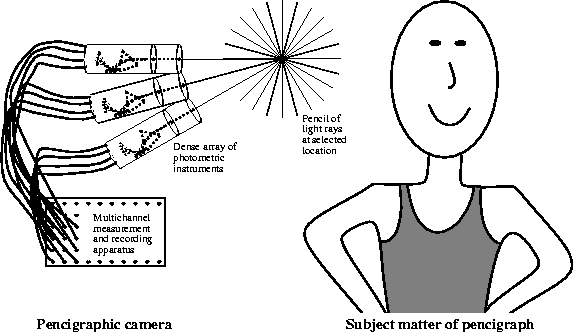

Figure: The `photoquantigraph' is a recording of the pencil of light rays passing through a given point in space. Such a recording could be approximated by a discrete array of spotmeters, angled toward a common point -- the center of projection.

Panoramic photography attempts to record a large portion of the `nonmetric photoquantigraph'gif onto a single piece of film (often by rotating the camera while sliding the film through a slit). The nonmetric photoquantigraph may also be estimated from a collection of pictures all taken from the same point in space (with differing camera orientations and lens focal lengths).

The basic philosophy is that the camera may be regarded as an array of (nonmetric) spotmeters, measuring rays of light passing through the COP. To each pair of pixel indices of the sensor array in a camera, we may associate an azimuth and elevation. Eliminating lens distortion[8] makes the images obey the laws of projective geometry, so that they are (to within image noise and cropping) in the same orbit of the projective group action. (Lens distortion may also be simply absorbed into the mapping between pixel locations and directions of arrival.)

Trying to use a pixel from a camera as a lightmeter raises many interesting and important problems. The output of a typical camera, f, is not linear with respect to the incoming quantity of light, q. For a digital camera, the output, f, is the pixel value, while for film, the output might be the density of the film at the particular location under consideration. I will assume that the output is some unknown but monotonic function of the input. Monotonicity, a weaker constraint than linearity, is what I mean by ``nonmetric spotmeter'' -- our knowledge of the quantity of light received is in terms of the nonmetric quantity f(q), not q itself.

Models for the nonlinearity, f, include the classic response curve[9]:
or the author's tex2html_wrap_inline1020 curve that attempts to capture the toe and shoulder regions of the response. Methods to estimate the unknown response curve from pictures that differ only in exposure, have also been proposed[10]. These methods are based on computing the joint histogram between differently exposed pictures, and then estimating the function g(f), defined by
where q(x,y) is the quantity of light received in a first exposure, and kq(x,y), the quantity of light received in a second exposure, is k times that of the first exposure. In traditional film cameras, k would most likely be tex2html_wrap_inline1032, but in electronic cameras, k may vary continuously. Since the response curve, f, is assumed to be unknown, we begin with the estimates of the so-called `range-range'[10] plots, g(f(q)) = f(kq) versus f(q) (so-called because they represent the range of the response curve plotted against the range of the response curve for a different exposure). Examples of the range-range plots for various values of k, appear in Fig 2. (These plots completely

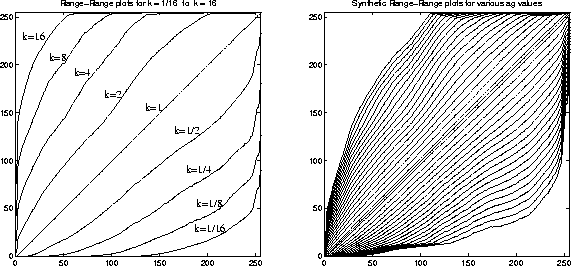

Figure: Range-range plots, g(f(q(x,y))) = f(kq(x,y)), characterizing the specific camera and digitizer combination used by author. (a) plots estimated from joint histograms of differently exposed pictures of the same scene. (b) family of curves generated by the `exact' model, for various values of the input parameter.

characterize the response of a specific camera and digitizer -- a system designed and built by the author, comprising a miniature camera built into a pair of eyeglasses together with a tiny computer screen, connected to clothing containing a digitizer with Internet connection; further information is available from the Web site listed in the titlepage.)


If what is desired is a picture of increased spatial extent or spatial resolution, the nonlinearity is not a problem, so long as it is not image dependent. However, most low-cost cameras have a built in automatic gain control (AGC), electronic level control, auto iris, or some other form of automatic exposuregif which cannot be turned off or disabled. This means that the unknown response function, f(q), is image dependent, and will therefore change over time, as the camera framing changes to include brighter or darker objects.

Although AGC was a good invention for its intended application (serving the interests of most camera users who merely wish to have a properly exposed picture without having to make adjustments to the camera), it has previously thwarted attempts to estimate the projective coordinate transformation between frame pairs. Examples of an image sequence, acquired using a camera with AGC, appear in Fig 3.

Figure: The `fire-exit' sequence, taken using a camera with AGC. (a)-(j) frames 1-10 of the sequence: as the camera pans across to take in more of the open doorway, the image brightens up showing more of the interior, while, at the same time, clipping highlight detail. Frame 10 (a) shows the writing on the white paper taped to the door very clearly, but the interior is completely black. In frame 13 (d) and beyond, the paper is completely obliterated, but more and more detail of the interior becomes visible, showing that the fire exit is blocked by the clutter inside. (k)-(t) `certainty' images corresponding to (a)-(j).

The purpose of this paper is to propose a joint estimation of the projective coordinate transformation and the tone-scale change. Each of these two may be regarded as a ``motion estimation'' problem if we extend the concept of ``motion estimation'' to include both `domain motion' (motion in the traditional sense) as well as `range motion' (Fig 4).

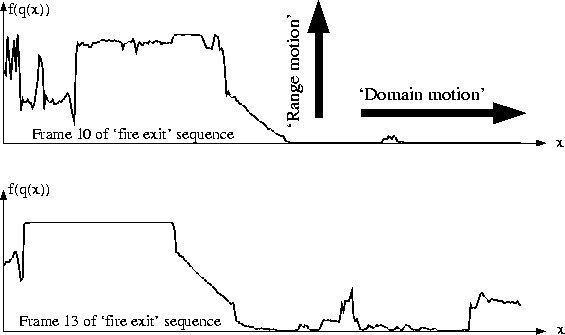

Figure: Center rasters of two images from the `fire exit' sequence. `Domain motion' is motion in the traditional sense (e.g. motion from left to right, zoom, etc.), while `Range motion' refers to a tone-scale adjustment (e.g. lightening or darkening of the image). In this case, the camera is panning to the right, so domain motion is to the left. However, when panning to the right, the camera points more and more into the darkness of an open doorway, causing the AGC to adjust the exposure. Thus there is some ``upwards'' motion of the curve as well as ``leftwards'' motion. Just as panning the camera across causes information to leave the frame at the left, and new information to enter at the right, the AGC causes information to leave from the top (highlights get clipped) and new information to enter from the bottom (increased shadow detail).


As in[6], we consider one dimensional ``images'' for purposes of illustration, with the understanding that the actual operations are performed on 2-D images. The 1-D projective-Wyckoff group is defined in terms of the group of projective coordinate transformations, taken together with the one-parameter group of image darkening/lightening operations: tex2html_wrap_inline1056 tex2html_wrap_inline1058 where g characterizes the lightening/darkening operation.

The law of composition is defined as: tex2html_wrap_inline1062 where the first law of composition on the right hand side is the usual one for the projective group, and the second one is that of the one-parameter lightening/darkening subgroup.

Two successive frames of a video sequence are related through a group-action that is near the identity of the group, thus one may think of the Lie algebra of the group as providing the structure locally. As in previous work[6] an approximate model which matches the `exact' model in the neighbourhood of the identity is used.

For the projective group, the approximate model has the form tex2html_wrap_inline1064.

For the `Wyckoff group' (which is a one parameter group isomorphic to addition over the reals, or multiplication over the positive reals), the approximate model may be taken from Eq 1, by noting that

This equation suggests that linear regression on the joint histogram between two images would provide an estimate of tex2html_wrap_inline1066 and tex2html_wrap_inline1068, while leaving tex2html_wrap_inline1070 unknown, which is consistent the fact that the response curve may only be determined up to a constant scale factor.

From (4) we have that the (generalized) brightness change constraint equation is tex2html_wrap_inline1072. Combining this equation with the Taylor series representation tex2html_wrap_inline1074, the equation of motion becomes: tex2html_wrap_inline1076. Minimizing tex2html_wrap_inline1078 yields a linear solution in substituted variables (that are easily related to the variables of the approximate model):
where F(x,t)=f(q(x)) at time t, tex2html_wrap_inline1084, at time t, and tex2html_wrap_inline1086 is the frame difference of adjacent frames.


To construct a single floating-point image of increased spatial extent and increased dynamic range, each pixel of the output image is constructed from a weighted sum of the images whose coordinate-transformed bounding boxes fall within that pixel. The weights in the weighted sum are the so-called `certainty functions'[10], which are found by evaluating the derivative of the corresponding `effective response function' at the pixel value in question. While the response function, f(q), is fixed for a given camera, the `effective response function', tex2html_wrap_inline1090 depends on the exposure, tex2html_wrap_inline1092, associated with frame, i, in the image sequence. By evaluating tex2html_wrap_inline1096, we arrive at the so-called `certainty images' (Fig 3). Lighter areas of the `certainty images' indicate moderate values of exposure (mid-tones in the corresponding images), while darker values of the certainty images designate exposure extrema -- exposure in the toe or shoulder regions of the response curve where it is difficult to discern subtle differences in exposure.

The photoquantigraphic estimate may be explored interactively on a computer system (Fig 5), but the simultaneous wide dynamic range and ability to discern subtle differences in greyscale are lost once the image is reduced to a tangible form (e.g. a hardcopy printout).

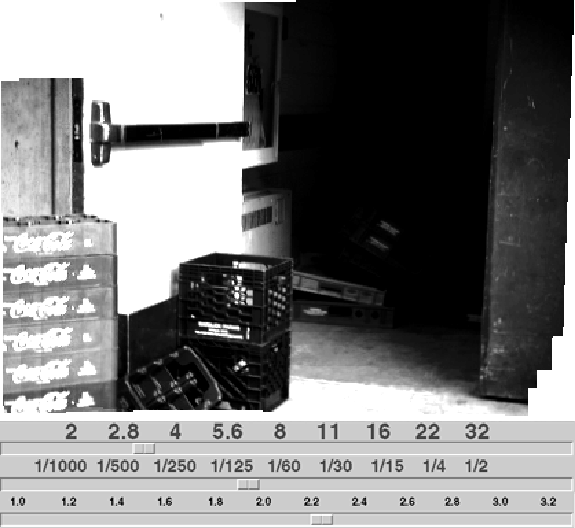

Figure: Floating point photoquantigraphic image constructed from the fire-exit sequence. The dynamic range of the image is far greater than that of a computer screen or printed page. The photoquantigraphic information may be interactively viewed on the computer screen, however, not only as an environment map (with pan, tilt, and zoom), but also with control of `exposure' and contrast. With a `virtual camera' we may move around in the photoquantigraph, both spatially and tonally.

In order to print a picture of such dynamic range it may be preferable to relax the monotonicity constraint, and perform some local tone-scale adjustments (Fig 6).

Figure: Fixed-point image made by tone-scale adjustments that are only locally monotonic, followed by quantization to 256 greylevels. Note that we can see clearly both the small piece of white paper on the door (and even read what it says -- ``COFFEE HOUSE ''), as well as the details of the dark interior.

Even if the end goal is a picture of limited dynamic range (as in Fig 5), perhaps where the artist wishes to deliberately wash out highlights and mute down shadows for expressive purposes, the author's philosophy is that one should attempt to capture as much information about the scene as possible, produce a photoquantigraphic estimate, and then ``put expression'' into that estimate (by throwing away information in a controlled fashion) to produce a final picture.


The procedure for self-calibrating a camera (to within a constant scale factor) has been exploited for capturing photoquantigraphic measurements, in particular, treating the camera as an array of photometric measuring instruments. This has been accomplished by proposing and implementing a global motion estimation algorithm which considers jointly global ``motion'' in the domain and range of the functions undergoing ``motion''. Dynamic range has been extended by combining differently exposed images where the AGC, rather than thwarting motion estimation algorithms as is generally otherwise the case, actually provides both more information from the scene and information about the camera's unknown response function.


Thanks to Rosalind Picard, Charles Wyckoff, Shawn Becker, and Berthold Horn for many interesting discussions.


S. Mann. Compositing multiple pictures of the same scene. In Proceedings of the 46th Annual IS&T Conference, Cambridge, Massachusetts, May 9-14 1993. The Society of Imaging Science and Technology.

S. Mann and R. W. Picard. Video orbits of the projective group; a simple approach to featureless estimation of parameters. TR 338, Massachusetts Institute of Technology, Cambridge, Ma, See 1995. Also appears IEEE Trans. Image Proc., Sept 1997, Vol. 6 No. 9.

Bernd Girod and David Kuo. Direct estimation of displacement histograms. OSA Meeting on IMAGE UNDERSTANDING AND MACHINE VISION, June 1989.

R. Wilson, A. D. Calway, E. R. S. Pearson, and A. R. Davies. An introduction to the multiresolution Fourier transform. Technical report, Department of Computer Science, University of Warwick, Coventry CV4 7AL UK., 1992.

A D Calway, H Knutsson, and R Wilson. Multiresolution estimation of 2-d disparity using a frequency domain approach. pages 227-236. Springer-Verlag, September 1992.

S. Mann and R. W. Picard. Virtual bellows: constructing high-quality images from video. In Proceedings of the IEEE first international conference on image processing, Austin, Texas, Nov. 13-16 1994.

R. Szeliski and J. Coughlan. Hierarchical spline-based image registration. CVPR, pages 194-201, 1994.

Lee Campbell and Aaron Bobick. Correcting for radial lens distortion: A simple implementation. TR 322, M.I.T. Media Lab Perceptual Computing Section, Cambridge, Ma, Apr 1995.

Charles W. Wyckoff. An experimental extended response film. S.P.I.E. NEWSLETTER, JUNE-JULY 1962.

S. Mann and R.W. Picard. Being `undigital' with digital cameras: Extending dynamic range by combining differently exposed pictures. Technical Report 323, M.I.T. Media Lab Perceptual Computing Section, Boston, Massachusetts, 1994. Also appears, IS&T's 48th annual conference, pages 422-428, May 1995.

About this document ...

`Photoquantigraphy' with AGC: Joint parameter estimation in both domain and range of functions in same orbit of the projective-wyckoff group

This document was generated using the LaTeX2HTML translator Version 96.1-h (September 30, 1996) Copyright © 1993, 1994, 1995, 1996, Nikos Drakos, Computer Based Learning Unit, University of Leeds.

The command line arguments were:
latex2html -split 0 icip96.

The translation was initiated by Steve Mann on Sun Jan 4 21:51:20 EST 1998
This work sponsored in part by Hewlett-Packard Research Labs.
We neglect the boundaries of the sensor array and assume that both pictures have sufficient field of view to capture all of the objects of interest.
Terminology in single quotes is that defined by the author here or elsewhere.
By nonmetric, I mean that even if we know the exact direction of arrival corresponding to each pixel in the panoramic picture, it does not tell us the actual quantity of light arriving from that direction.

I refer to all of these methods of automatic exposure control as AGC, whether or not they are actually implemented using gain.
